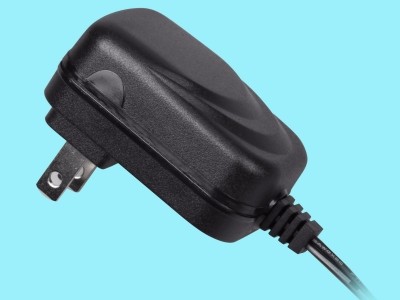

DKS051 卧式6W UL

输入特性                 环境参数                      安规标准

Input Characteristics        Enviromental Parameter          Safety Standards

输入电压:100V-240Vac      工作温度:0-40℃              CB： IEC/EN60950 60065 61558

Input Voltage:100-240Vac    Operating Temperature:0-40℃    UL: UL60950  60065

输入频率：50～60Hz       工作湿度:5%-95%              PSE: J60950 J60065

Input Frequency:50～60Hz   Operating Humidity:5%-95%      GS: EN60950

输入电流:0.15A Max        储藏温度:-20℃-80℃           SAA: AS/NZ60950

Input Current:0.15A Max     Storage Temperature:-20℃-80℃   KC: K60950

空载功率：<0.1W

No Load Power:0.1W

产品说明                       输出特性

Product Description                            OUTPUT

具有功能：过流 过压 过载 短路保护

Function:OCP OVP OLP SCP

MTBF:>50000 Hours

Insulation Resistance 50Mohm Min at500V

Hi-Pot:3000Vac 10MA 1min

Content:RoHS REACH PAHS

Product Size: L:74.0 X W:30.0 X H:41.5MM
