DKS121H 卧式12W 澳规白色
输入电压:100V-240Vac 输入电流:0.15A Max
Input Characteristics Enviromental Parameter Safety Standard
Input Voltage: 100-240Vac Operating Temperature: 0-40℃ CB：IEC/EN60950 60065 61558
UL: UL60950 60065
Input Frequency: 50～60Hz Operating Humidity: 5%-95% PSE: J60950 J60065 GS: EN60950
Input Current: 0.15A Max Storage Temperature: -20℃-80℃ SAA: AS/NZ60950
No Load Power:0.1W KC: K60950
Product Description OUTPUT
Model No | Voltage Range(V) | Current Range(A) | Max Power(W) |
DQS121H-xxxyyy-z | 18-24 | 0.01-0.65 | 12W |
MTBF: >50000 Hours Function:OCP OVP OLP SCP
Insulation Resistance 50Mohm Min at500V
Hi-Pot:3000Vac 10MA 1min
Content:RoHS REACH PAHS

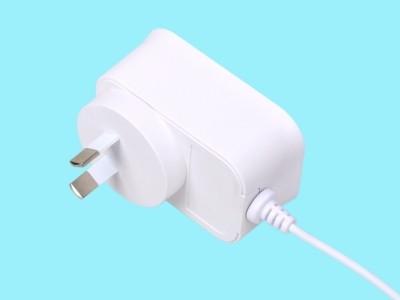

Product Pictures
Product Size: L:74.0 X W:30.0 X H:41.5MM
